- Design and technology are woven together

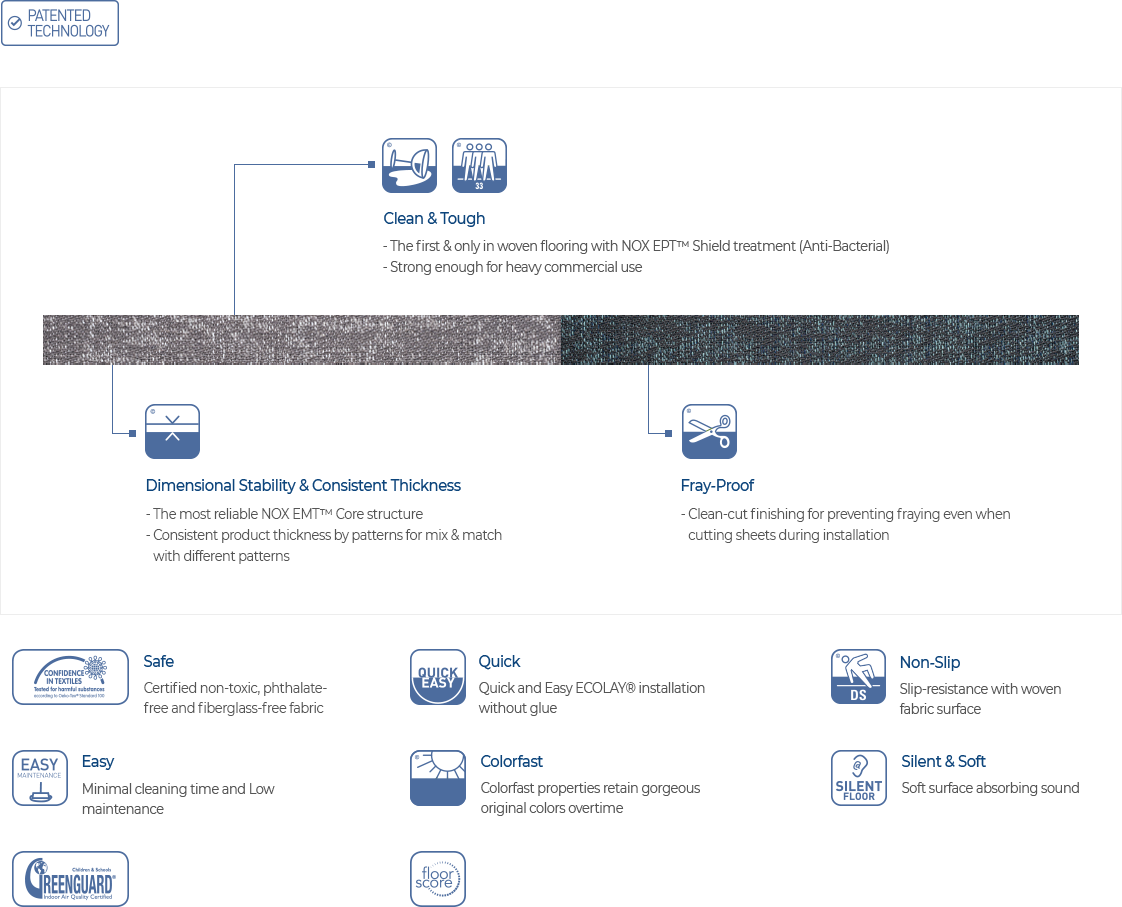

- Infinite DESIGN spectrum – Only LOOM+ enables unique variation of creating your own floor by mixing and matching different patterns in two tile sizes. Distinguished NOX EMT™ Core structure – the first woven flooring with proven NOX EMT™ Core structure that ensures the most stable and durable installation
-
EPT™ Shield
- Safe and strong 2-fold LVT surface coating technology
- Anti-bacterial coating with superior
scratch-resistance
-
EMT™ Core
- Stable and eco-friendly LVT core technology
- Unique multi-layer structure with supreme
dimensional stability
-
EPT Shield+
- High performance surface coating technology
- Industry no.1 stain resistance and better
anti-slip function
Difference
-
- LOOM+ Design
-
- PLAY with COLOR and TEXTURE
-
- Profound Color Composition
- Realizing multiple tones of color - carefully selected by artists - we provide you with very unique colors that expresses LOOM+ in harmony with surrounding interiors.
-
- Infinite array of color and texture
- Available in 59 colors covering diverse tones Like neutral, cool, warm, light, and dark in five different yarn thicknesses, we give you nine unique design patterns.
-
- LOOM+ Technology
-
- PROVEN INNOVATION
- Distinguished NOX EMT™ Core Structure
NOX EMT™ Core structure featured with innovative functionality and safety, proven in more than 50 countries over 20 years
Technical Information
- Specifications
- Test Result
- Caution
| Brand | Size [mm] | Thickness [mm] | Pcs/Box | m²/Box | kg/m² |
|---|---|---|---|---|---|
| LOOM+ | 500 x 500 | 3 | 16 | 4 | 5.0 |
| 5 | 10 | 2.5 | 8.2 | ||
| 250 x 1000 | 3 | 16 | 4 | 5.0 | |
| 5 | 10 | 2.5 | 8.2 | ||
| 500 x 1000 | 3 | 8 | 4 | 5.0 | |
| 5 | 5 | 2.5 | 8.2 |
-
Condition in at least 19°C or the normal temperature of the room where the product is to be laid,
for at least 48 hours before installing. Cartons must be stacked less than 5 high and tiles removed 30 minutes before use.
The site conditions must be maintained during installation and for at least 48 hours after completion.
NOX Corporation will not accept claims where these instructions have not been followed.
| Test Item | Standard | LOOM+ |
|---|---|---|
| Level of use | EN 685 | 33 |
| Fraying | EN 1814 | Frayproof |
| Thermal resistance | ISO 8302 | 0.02m²K/W |
| Castor chair resistance | EN 985 | No damage |
| Dimensional stability | ISO 23999 / EN 986 | ≤ 0.10% ( Norm: ≤ 0.25% ) / Passed |
| Fire resistance | EN 13501-1 | Bfl -s1 |
| Indoor air quality | Low VOC (floor score certified) | |
| Underfloor heating | EN 12524 | Suitable |
| Light fastness | ISO 105-B02 | ≥ 6 |
| Slip resistance | DIN 51130 / EN 13893 | R11 / DS |
| Flexibility | ISO 24344 | Passed |
| Impact sound insulation | ISO 10140-3 | 9dB |
| Body Voltage | EN 1815 | ≤ 2KV |
| Squareness & Straightness | ISO 24342 / ASTM F2055 | No deviation / ≤ 0.01 in |
| Residual Indentation | ISO 24343-1 / ASTM F1914 | ≤ 0.1mm / < 8% |
| Resistance to chemicals | ISO 26987 / ASTM F925 | No Defects / No Defects |
