Design and technology are woven together
Infinite DESIGN spectrum – Only LOOM+ enables unique variation of creating your own floor by mixing and matching different patterns in two tile sizes. Distinguished NOX EMT™ Core structure – the first woven flooring with proven NOX EMT™ Core structure that ensures the most stable and durable installation
  • EPT

    EPT™ Shield

    • Safe and strong 2-fold LVT surface coating technology
    • Anti-bacterial coating with superior
      scratch-resistance
  • EMT

    EMT™ Core

    • Stable and eco-friendly LVT core technology
    • Unique multi-layer structure with supreme
      dimensional stability
  • EPT SHIELD+

    EPT Shield+

    • High performance surface coating technology
    • Industry no.1 stain resistance and better
      anti-slip function
Download Brochure

Product

product 비교하기
  • No Yes

Difference

  • LOOM+ Design
    PLAY with COLOR, SIZE and TEXTURE
    • Profound Color Composition
      Realizing multiple tones of color - carefully selected by artists - we provide you with very unique colors that expresses LOOM+ in harmony with surrounding interiors.
    • Infinite array of color and texture
      Available in 59 colors covering diverse tones Like neutral, cool, warm, light, and dark in five different yarn thick­ nesses, we give you nine unique design patterns.
    • Designed for mix & match
      Creative and unique ‘mix & match’ only by LOOM+ is realized by introducing the same weaving system to nine design patterns.
    • Optimal 3 Size variation
      With our unique module sizes of 50cmX50cm, 25cmX100cm, and 50cmX100cm, the first to be introduced in the woven flooring market, you can elevate flat environments to inspiring interior spaces. (Select patterns are available in specific module sizes.)

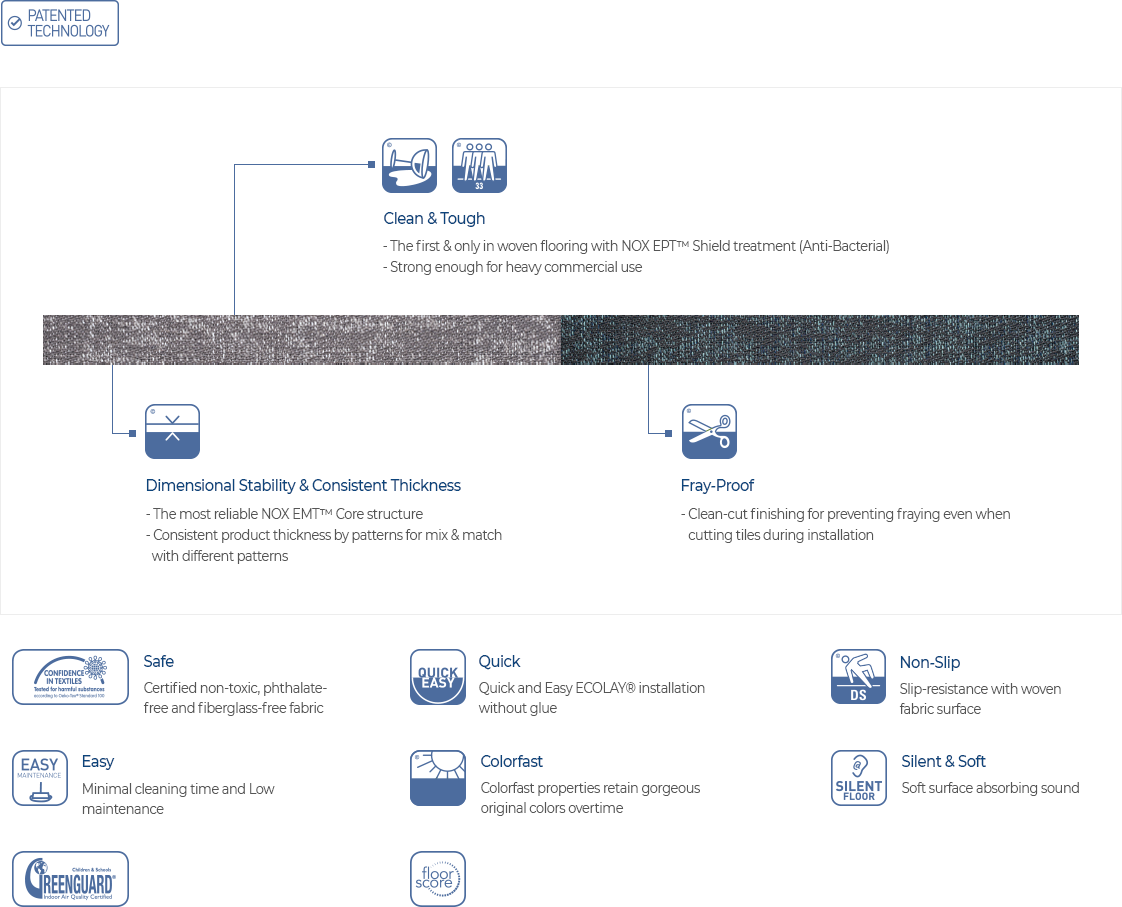

  • LOOM+ Technology
    PROVEN INNOVATION
    Distinguished NOX EMT™ Core Structure
    NOX EMT™ Core structure featured with innovative functionality and safety, proven in more than 50 countries over 20 years

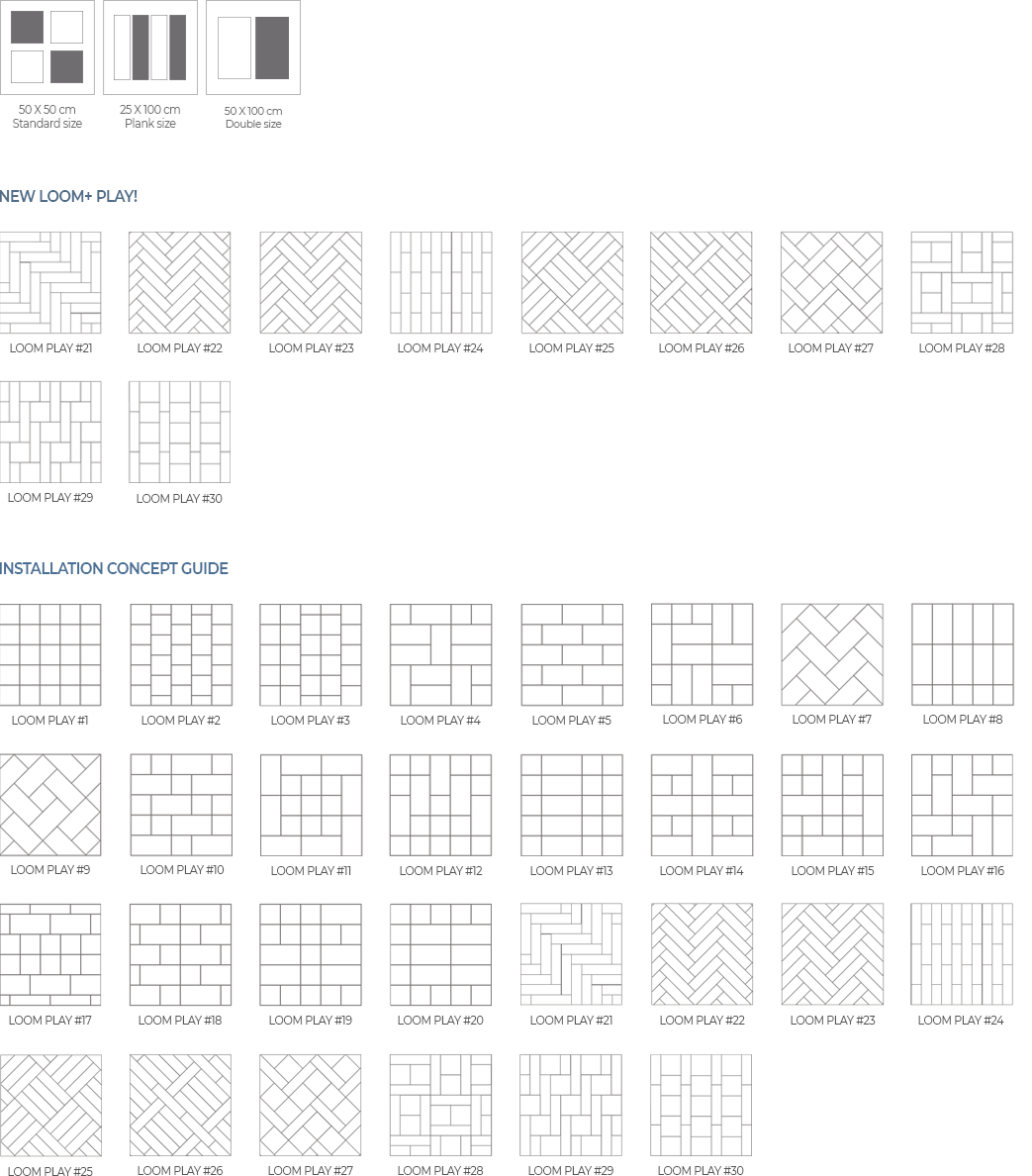

  • Concept Guide
    Reinvent Spaces with LOOM+ PLAY!
    The new 25cmX100cm MIX&MATCH plank brings new proportion and scale to your flooring to create fresh and exciting designs. The LOOM+ modular system also includes 50cmX50cm squares and 50cmX100cm planks. All work together in any combination, giving you the freedom to create your own design by mixing & matching different patterns and colors in 3 size variations. (Select patterns are available in specific module sizes.)

Technical Information

  • Specifications
  • Test Result
  • Caution
technical information table
Brand Size [mm] Thickness [mm] Pcs/Box m²/Box kg/m²
LOOM+ 500 x 500 3 16 4 5.0
5 10 2.5 8.2
250 x 1000 3 16 4 5.0
5 10 2.5 8.2
500 x 1000 3 8 4 5.0
5 5 2.5 8.2
  • Condition in at least 19°C or the normal temperature of the room where the product is to be laid,
    for at least 48 hours before installing. Cartons must be stacked less than 5 high and tiles removed 30 minutes before use.
    The site conditions must be maintained during installation and for at least 48 hours after completion.
    NOX Corporation will not accept claims where these instructions have not been followed.
technical information Test Result table
Test Item Standard LOOM+
Level of use EN 685 33
Fraying EN 1814 Frayproof
Thermal resistance ISO 8302 0.02m²K/W
Castor chair resistance EN 985 No damage
Dimensional stability ISO 23999 / EN 986 ≤ 0.10% ( Norm: ≤ 0.25% ) / Passed
Fire resistance EN 13501-1 Bfl -s1
Indoor air quality Low VOC (floor score certified)
Underfloor heating EN 12524 Suitable
Light fastness ISO 105-B02 ≥ 6
Slip resistance DIN 51130 / EN 13893 R11 / DS
Flexibility ISO 24344 Passed
Impact sound insulation ISO 10140-3 9dB
Body Voltage EN 1815 ≤ 2KV
Squareness & Straightness ISO 24342 / ASTM F2055 No deviation / ≤ 0.01 in
Residual Indentation ISO 24343-1 / ASTM F1914 ≤ 0.1mm / < 8%
Resistance to chemicals ISO 26987 / ASTM F925 No Defects / No Defects
Get in touch with us
For product brochures, samples or any questions.
We’re here to help.
Contact Us
