Luxury Design Wall & Interior Tile
Elevate your space with the refinement of NOX LDW+, a fusion of innovation and style. With outstanding quality, durability, and a realistic design, NOX LDW+ sets a new standard for your spaces
  • EPT

    EPT™ Shield

    • Safe and strong 2-fold LVT surface coating technology
    • Anti-bacterial coating with superior
      scratch-resistance
  • EMT

    EMT™ Core

    • Stable and eco-friendly LVT core technology
    • Unique multi-layer structure with supreme
      dimensional stability
Download Brochure

Overview

product 비교하기
  • No Yes

Difference Specialties

  • Innovative technology
    Easier installation but stronger joint
    Save Lighter weight, simpler installation saving your time & cost
    Easier, faster installation with stronger joinery method

    The world’s first diagonal-cutting-edge technology providing the easiest and
    fastest installation.

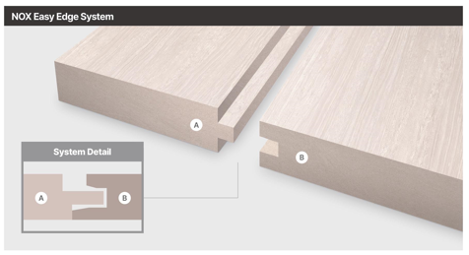

    Experience the NOX Easy Edge system applied next level interior tile, presenting easier,
    faster installation and a stronger joint

    01. Faster installation

    Easy installation method reduce flooring installation time to within 24hr*
    *can vary depends on installation environment & conditions

    02. Easier installation

    Lightweight of the tile, than ceramic tile, eases workload and reduces damage risk during preparation and installation

  • Irreplaceable interior tile
    First in ever, the better, luxury design tile adding premium value to a space
    Solid Unmatched durability with scratch & dent resistance
    EMT™ Core, multi-layered technology & EMT™ Shield, high performing premium coating technology

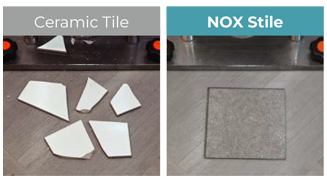

    Damage Resistant!

    Lower risk of cracking or breaking than ceramic or natural tiles that could lead to injury

    *Tested with modified EU certified EN 13329:2006+A1:2008 test methods

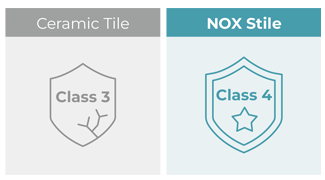

    Scratch Resistant!

    Classified with Class 4*, withstanding heavy traffic from commercial area such as hotels and department stores. Strong for outer impact or pet scratches

    *Test result for Surface Abrasion (ASTM-C1027)

  • Safe The Ultimate hygiene solution with NOX EPT™ Technology
    Enhance hygiene in the bathroom with
    NOX coating technology

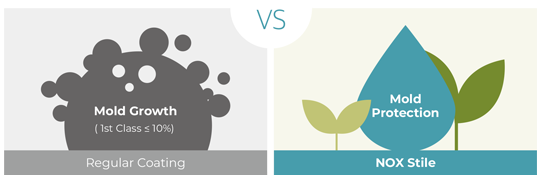

    Safer and more Hygienic, EPT™ Shield coating technology

    EPT™ Shield technology not only creates premium matte texture, but it also features discoloration and contamination resistance that ease cleaning and maintenance and an anti-mold coating for more hygienic environments. The safety of the antibacterial materials used for EPT™ Shield technology has been approved by the US EPA

    ※US EPA: US Environmental Protection Agency

    Phthalate-free! Heavy metal-free! Pollution-free!

    Zero-heavy metals contain reliable interior tile with eco-friendly certification. Also safe and sustainable with carbon-reducing raw material usage.

  • Soft Soft underfoot comfort with NOX EPT™ Technology
    Flooring solutions designed for your family:
    enhanced safety and reliability
    Acoustic Performance

    The NOX multi-layer technology reduces the noise level by absorbing the
    physical impact sound. In addition, the temperature of the flooring's
    surface remains constant, creating a comfortable environment
    for barefoot walking in the winter or summer.

    Healthy choice for all family member

    Interior tile, comfortable to walk for kids to the elderly

    Stile’s resilience offers a softer, more comfortable walking experience than the hard and solid ceramic tile

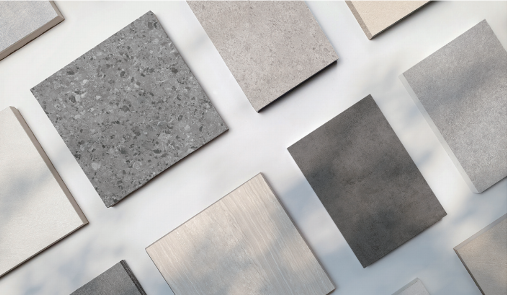

  • Stylish The world’s largest collections of global designs solution
    Leading trendy design:
    NOX's exclusive curation of premium spaces
    More Classic

    NOX’s in-house design team presents a carefully selected
    curation of classic designs that fit into any space.
    A detailed portrayal of the stone and wood’s unique
    features will upgrade the existing space with freshness

    More Realistic

    NOX have the world's leading, largest in-house design
    solution with over 6,000 designs that have won
    world-renowned awards. More realistic texture created
    with proven global design experience offers a
    present of premium space.

  • Sustainability standard
    The world's first and most sustainable interior tile
    Sustainable 100% easily recyclable interior tile using carbon reducing raw materials
    , the world’s first interior tile
    made with sustainable materials
    Stile, utilizes carbon-reducing raw materials, ensuring safety for both families and the environment. The raw materials are certified with ISCC PLUS, signifying compliance with The Renewable Energy Directive (RED) of the European Union
    • Bio-Circular Balanced PVC
      A sustainable raw material produced from discarded resources like waste cooking oil reduces carbon emissions by 114% compared to conventional PVC
    • Eco-friendly
      Phthalate-Free Plasticizer
      Eco-friendly plasticizers made from recycled PET bottles, setting an industry-first while enhancing safety and sustainability
    NOX redefines the sustainability standard of flooring and leads global LVT flooring sustainability innovation by expanding the percentage of carbon-reducing materials to the world’s highest level and producing 100% easily recyclable floorings only.

Technical Information

  • Specifications
  • Test Result
technical information table
Brand Size [mm] Thickness [mm] Size[mm] Pcs/Box Remark
NOX LDW+ _Stile 4.5 0.3 [Stone] 590X 590 8 / 2.78 Floor Tile
[Stone] 590X 1180 4 / 2.78 Wall Tile
  • Condition in at least 19°C or the normal temperature of the room where the product is to be laid,
    for at least 48 hours before installing. Cartons must be stacked less than 5 high and tiles removed 30 minutes before use.
    The site conditions must be maintained during installation and for at least 48 hours after completion.
    NOX Corporation will not accept claims where these instructions have not been followed.
technical information Test Result table
Test Item Standard LOOM+
Level of use EN 685 33
Fraying EN 1814 Frayproof
Thermal resistance ISO 8302 0.02m²K/W
Castor chair resistance EN 985 No damage
Dimensional stability ISO 23999 / EN 986 ≤ 0.10% ( Norm: ≤ 0.25% ) / Passed
Fire resistance EN 13501-1 Bfl -s1
Indoor air quality Low VOC (floor score certified)
Underfloor heating EN 12524 Suitable
Light fastness ISO 105-B02 ≥ 6
Slip resistance DIN 51130 / EN 13893 R11 / DS
Flexibility ISO 24344 Passed
Impact sound insulation ISO 10140-3 9dB
Body Voltage EN 1815 ≤ 2KV
Squareness & Straightness ISO 24342 / ASTM F2055 No deviation / ≤ 0.01 in
Residual Indentation ISO 24343-1 / ASTM F1914 ≤ 0.1mm / < 8%
Resistance to chemicals ISO 26987 / ASTM F925 No Defects / No Defects
technical information Test Result table
Test Item Requirements Results Test method
Appearance No defect Meets KS M3802: 2022
Dimensions (Length) ± 0.1% Meets KS M3802: 2022
Dimensions (Width) ± 0.1% Meets KS M3802: 2022
Overall Thicknkess ± 0.15MM Meets KS M3802: 2022
Squareness 0.25mm (max) Meets KS M3802: 2022
Coating thickness Min 8µm, Avg: Max 15µm Meets KS M3802: 2022
23°C (Indentation 23°C) ≤1.20mm Meets KS M3802: 2022
45°C (Indentation 45°C) ≤1.20mm Meets KS M3802: 2022
Residual Indentation ≤0.25mm Meets KS M3802: 2022
Dimensional stability after exposue to Heat (T.D) ≤0.25% Meets KS M3802: 2022
Dimensional stability after exposue to Heat (M.D) ≤0.25% Meets KS M3802: 2022
Chemical Resistance : Soybean Oil No more than a slight change in color and gloss Meets KS M3802: 2022
Chemical Resistance : Lubricating Oil Meets KS M3802: 2022
Chemical Resistance : 95% Ethylancohol Meets KS M3802: 2022
Chemical Resistance : Cement Paste Meets KS M3802: 2022
Chemical Resistance : 95% Ammonia Meets KS M3802: 2022
Chemical Resistance : Milk Meets KS M3802: 2022
(Chemical Resistance : 5% Acetic Acid Meets KS M3802: 2022
Chemical Resistance : 5% Hydrochloric Acid Meets KS M3802: 2022
Chemical Resistance : Kerosene Meets KS M3802: 2022
Chemical Resistance : Soy Sauce Meets KS M3802: 2022
Wear resistance ≤200mg Meets KS M3802: 2022
Slip resistance DP5, WP2 KS M3802: 2022
"Flame retardant (After flame time, char length)" After flame time: ≤20s Char length: ≤100mm Meets KS M3802: 2022
Phthalate Not Dectected KS M3802: 2022
