ACOUSTIC SETAGRIP
- Easiest with innovative technology
- Internationally patented micro-suction technology ensures strong adherence to the flooring, providing exceptional waterproof performance that facilitates the easiest installation and maintenance. In addition, industry-leading No. 1 noise absorption technology is applied to prevent sound transmission in apartments, and carbon-reducing materials are used that are safe for both people and the environment.
-
EPT™ Shield
- Safe and strong 2-fold LVT surface coating technology
- Anti-bacterial coating with superior
scratch-resistance
-
EMT™ Core
- Stable and eco-friendly LVT core technology
- Unique multi-layer structure with supreme
dimensional stability
-
EPT Shield+
- High performance surface coating technology
- Industry no.1 stain resistance and better
anti-slip function
Difference Specialties
-
Easiest, fastest installation and maintenance, saving costs
-
-

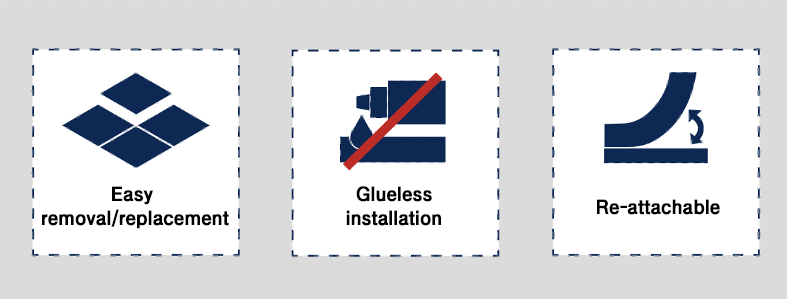

- The internationally patented micro-suction technology strongly adheres to the flooring, providing exceptional waterproofing and the easiest installation and maintenance
-
-
Advanced noise reduction technology providing the best foot comfort
-
-
The world's first and most sustainable flooring with carbon-reducing materials
-
NOX ACOUSTIC SETAGRIP utilizes carbon-reducing raw materials, ensuring safety for both families and the environment
-
- Bio-Circular Balanced PVC
- A sustainable raw material produced from discarded resources like waste cooking oil reduces carbon emissions by 114% compared to conventional PVC
- Bio-Circular Balanced PVC
-
- Eco-friendly
Phthalate-Free Plasticizer - Eco-friendly plasticizers made from recycled PET bottles, setting an industry-first while enhancing safety and sustainability
- Eco-friendly
- NOX redefines the sustainability standard of flooring and leads global LVT flooring sustainability innovation by expanding the percentage of carbon-reducing materials to the world’s highest level and producing 100% easily recyclable floorings only.

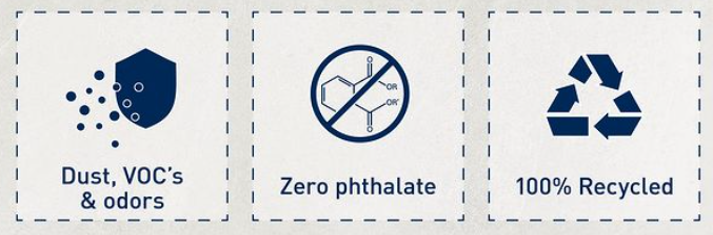

Safe for humans by not requiring flooring glues
Safe for the environment by being light weighted that lowers carbon emissions occurring during transportation -
< Discover the innovation in ACOUSTIC SETAGRIP >
Technical Information
- Specifications
- Test Result
- Caution
| Brand | Thickness [mm] | Wear Layer [mm] | Size [mm] | Pcs/Box |
|---|---|---|---|---|
| ACOUSTIC SETGARIP | 3.5 | 0.15 | 152.4 X 1219.2 (6" X 48") | 16 |
| 3.5 | 0.15 | 457.2 X 457.2 (18" X 18") | 14 |
-
ACOUSTIC SETAGRIP Installation Process
1) Remove only half of the release film from the backing.
2) Place the backing on the floor with half of the release film peeled back and folded.
3) Adjust and position the backing at the desired location.
4) After the positioning, peel away the remaining half of the release film.
5) Press down firmly to secure the entire backing to the floor.
| Test Item | Requirements | Results | TEST METHOD |
|---|---|---|---|
| Dimensions | Length: ≤0.15%, Width: ≤0.10% (MAX: 0.5mm) | Meets | ISO 24342 |
| Squareness | ≤ 0.25mm | Meets | |
| Overall thickness | Nominal value +0.18mm / -0.15mm Average value ± 0,20 mm |
Meets | ISO 24346 |
| Wear layer thickness | +13% / -10% | Meets | ISO 24340 |
| Total mass per unit area (average): g/m2 | +13% / -11% | Meets | ISO 23997 |
| Dimensional stability | ≤ |0.25| % | Meets | ISO 23999 ASTM F2199 |
| Residual indentation | ≤ 0.35mm (<0.35mm wear layer) ≤ 0.20mm (≥0.35mm wear layer) |
Meets | ISO 24343-1 |
| Peel resistance strength (N/mm) | ≥ 50 N/50 mm | Meets | ISO 24345 |
| Castor chair resistance | No damage after 25,000 rev | Meets | ISO 4918 |
| Color fastness | > 6 | Meets | ISO 105-B02, Method 3b |
| ΔE < 8 | Meets | ASTM F1515 | |
| Heat resistance | ΔE < 8 | Meets | ASTM F1514 |
| Chemical resistance | Not more than a slight change | Meets | ASTM F925 |
| Noise reduction | ΔLw : 20db | ISO 10140-3 | |
| IIC 56 IIC 67 (Without dropceiling) |
ASTM E492-09 | ||
| Indoor Air Quality | Floorscore, IAC Gold certified | CDPH/EHLB Standard Method v1.2-2017 Key European requirements |
