Global Click LVT Pioneer since 2005
Proven Click LVT installed in global market mainly for heavy commercial installation with its unique structure of unparalleled dimensional
stability and patented click joint system, 'Click'n go and Drop'n go!®'
  • EPT

    EPT™ Shield

    • Safe and strong 2-fold LVT surface coating technology
    • Anti-bacterial coating with superior
      scratch-resistance
  • EMT

    EMT™ Core

    • Stable and eco-friendly LVT core technology
    • Unique multi-layer structure with supreme
      dimensional stability
Download Brochure
인증마크

Product

product 비교하기
  • No Yes

Difference

  • EPT™ Shield & EMT™ Core Technology

    NOX Corporation, one of the world-largest LVT manufacturers, traces its roots to chemical engineering with expertise in core components of LVT flooring for more than 50 years. Its NOX EPT™ Shield & EMT™ Core technologies are the foundation of ECOCLICK+ innovation, providing the most stable and eco-friendly products.

    • EPT™ Shield
      ⋅ Safe and strong 2-fold LVT surface shield technology
      ⋅ PU or Ceramic PU coating treatment [Anti-Bacterial] without
         using Nano-silver [controversial to be harmful for human health]
      ⋅ Clear design protection layer
    • EMT™ Core-6C
      ⋅ Stable and eco-friendly LVT core technology
      ⋅ 6-layered EMT™ Core structure for long-term dimensional stability
    Proven Innovation of ECOCLICK+ since 2005
    Unique patented Click'n go and Drop'n go!® click system
    The easiest and strongest click system in the market

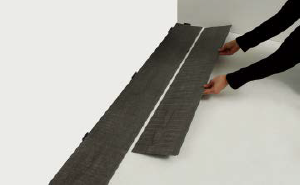

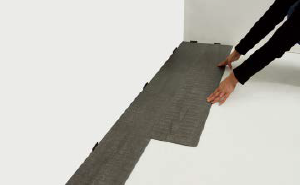

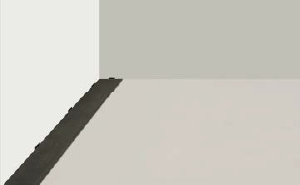

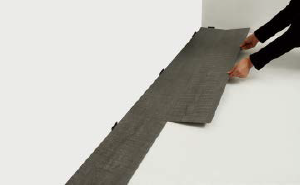

  • Easy & Quick Installation
    1.Unpack
    2.Angle & Click
    3.Drop & Click
  • Advantages of ECOCLICK+
    • Most diverse sizes
      - 2 plank sizes including grande plank size
      - 2 tile sizes including grande tile size
    • Superior dimensional stability with
      - NOX EPT™ Shield & EMT™ Core technologies
      - Fiberglass stabilization layer
    • Unique patented Click'n go and Drop'n go!® click system
      - The easiest and strongest
      click system in the market
    • Easy to install, replace, and remove
    • Silent and soft floor
    • Certified low VOCs and
      non-phthalate technology
    • 100% recyclable
    • Ultra water-resistant
    • Suitable for heated floor
    • Easier maintenance than
      traditional laminated wood
      and natural stone flooring
    • HD design

Additional Features

Diverse design and technical features are available upon request

  • Surface Embossing
    ECOCLICK+ with 5 different surface embossing textures including natural Embossed-In-Register

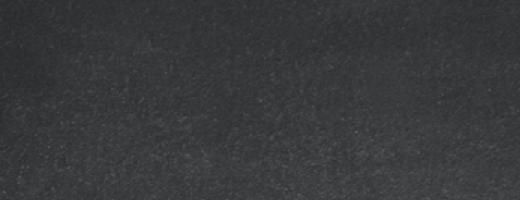

    • I-03 Sand structure

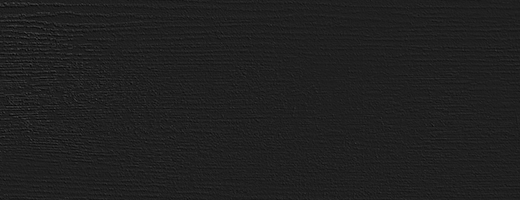

    • I-14 Wood structure

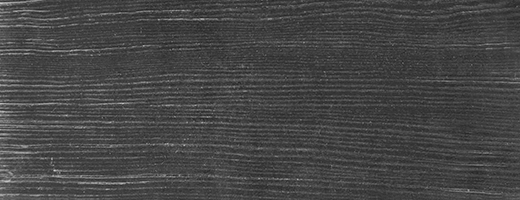

    • I-19 Rustic wood structure

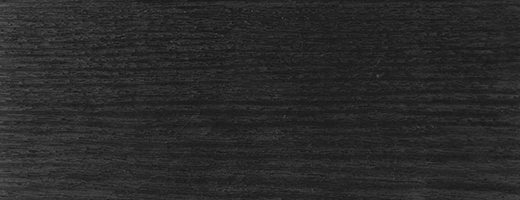

    • I-22 Wood structure

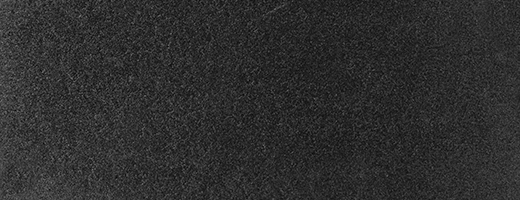

    • I-34 Stone structure
  • The first in LVT, "Built-In-Grout" available
    When installed, the natural grout line will appear, allowing for the natural elegance
    of stone and ceramic tiles to shine.
    ECOCLICK+ can be supplied in grout type according to your request.

Technical Information

  • Specifications
  • Installation Guideline
  • Maintenance
  • Test Result
technical information table
Brand Thickness [mm] Wear Layer Size [mm] Pcs/Box Sqm/Box
ECOCLICK+ 5 0.30 mm
/ 0.55 mm
185 x 1,212 8 1.79
235 x 1,505 6 2.12
305 X 610 10 1.86
462 x 925 6 2.56
  • Prior to installation, the subfloor must be heated for 14 days if heating is available, and if not, allow sufficient time to dry out completely.
  • Room temperature must be maintained at 18˚C or higher before and during installation.
  • The flooring must be allowed to acclimate in the room to be installed for a minimum of 24 hours and be stacked flat on the floor to avoid bending the floor.
  • Prior to installation, please ensure that both color and lot# are the same.
  • When installing ECOCLICK+, be sure to keep dust, dirt or foreign particles away from the locking strip.
  • Regularly sweep floor to remove sand and grit that can scratch floor.
  • For best results, use only water with a mop. Avoid flooding the floor with too much water.
  • For heavily soiled areas, use a neutral ph balanced floor cleaner.
  • Use caution when lifting boxes.
  • Promptly remove any standing water to avoid slippage.
  • Keep ECOCLICK+ on the flat surface to keep it from warping.
technical information Test Result table
Product Specification Standard ECOCLICK+
Surface Treatment (NOX EPT™ Shield) ISO 22196 / ASTM G21-15 Anti-Bacterial / Anti-Fungi
Level of Use ISO 10874 0.30mm: 23, 31
0.55mm: 23, 33, 42
Total Thickness ISO 24346 +0.13mm / -0.10mm
Wearlayer Thickness ISO 24340 +13% / - 10%
Weight (g/m2) ISO 23997 +13% / - 10%
Dimensional stability &
Curling after exposure to heat
ISO 23999 ≤0.10%
≤1.0mm
Abrasion group EN 660-2 Class T
Castor Chair resistance ISO 4918 No damage
Squareness & Straightness ISO 24342 ≤400mm : ≤0.25mm
>400mm : ≤0.35mm
ASTM F2055 ≤0.01in
Residual Indentation ISO 24343-1 ≤0.1mm
Height difference between with a locking system
on the edges
ISO 10582 ≤0.1mm
Static Load Limit ASTM F970 ≤0.005 in @ 250psi min
Light Fastness ISO 105-B02 ≥ 6
Slip resistance EN 13893 DS
DIN 51130 R10
Impact Sound Reduction EN ISO 10140-3 9db
Resistance to Chemicals ISO 26987 No defects
Thermal Resistance EN 12667 0.017 (m2K/W)
Fire Resistance EN 13501-1 Bfl-s1
Body Voltage EN 1815 ≤2kV
Peel Resistance ISO 24345 More than 60N/50mm
Formaldehyde Group EN 717-1 E1
VOC Emissions IAC GOLD CERTIFIED / FLOOR SCORE CERTIFIED Very low VOC
